Dragon Etching · Dongguan, China
Precision Chemical Etching Solutions
From prototypes to high-volume production, we manufacture precision metal etched parts with exceptional accuracy and consistency.
- Custom OEM & ODM Manufacturing
- Precision Chemical Etching
- From Prototype to High-Volume Production
- ISO Quality Management
- Fast Lead Time
- Global Export Experience
±0.01 mm
Achievable precision
5–10 days
Prototype lead time
2–4 weeks
Mass production
24 h
Quotation response
Who we are

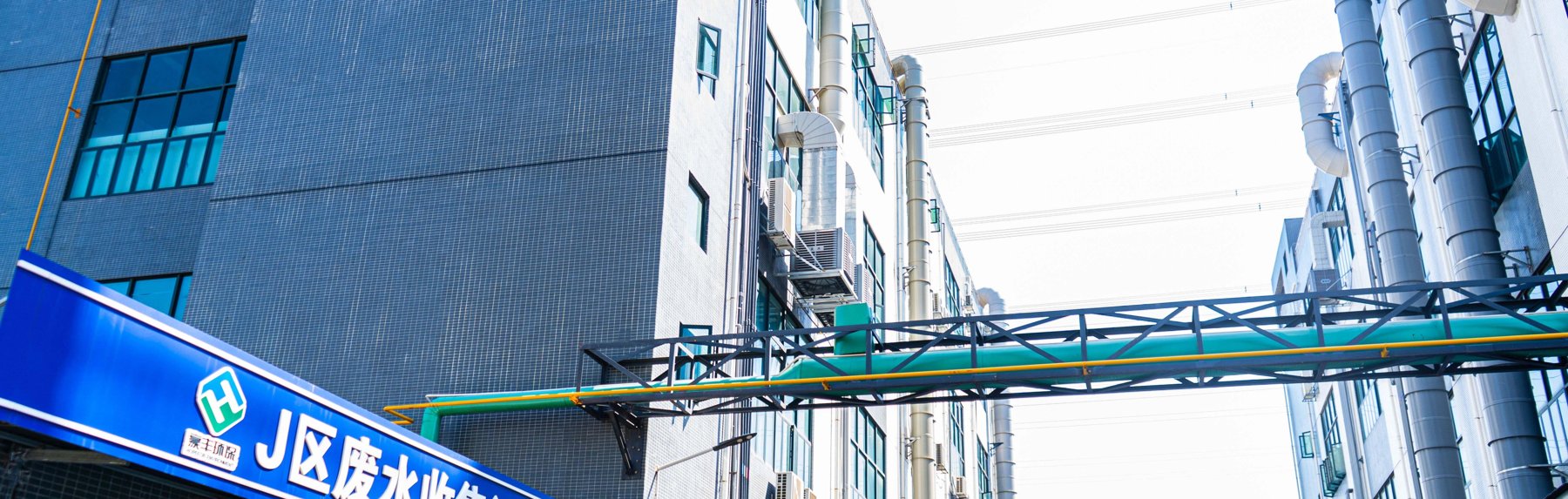

A source factory for precision chemical etching
Professional chemical etching and custom precision metal parts manufacturer. We provide high-precision metal etching, stamping and OEM customized hardware solutions for electronics, automotive, smart home and industrial equipment industries. Support drawing customization, sample production and mass global supply.
- High Precision Etching TechPhotolithography with CCD mask alignment and real-time depth monitoring holds etch tolerance to ±0.005 mm on critical features.

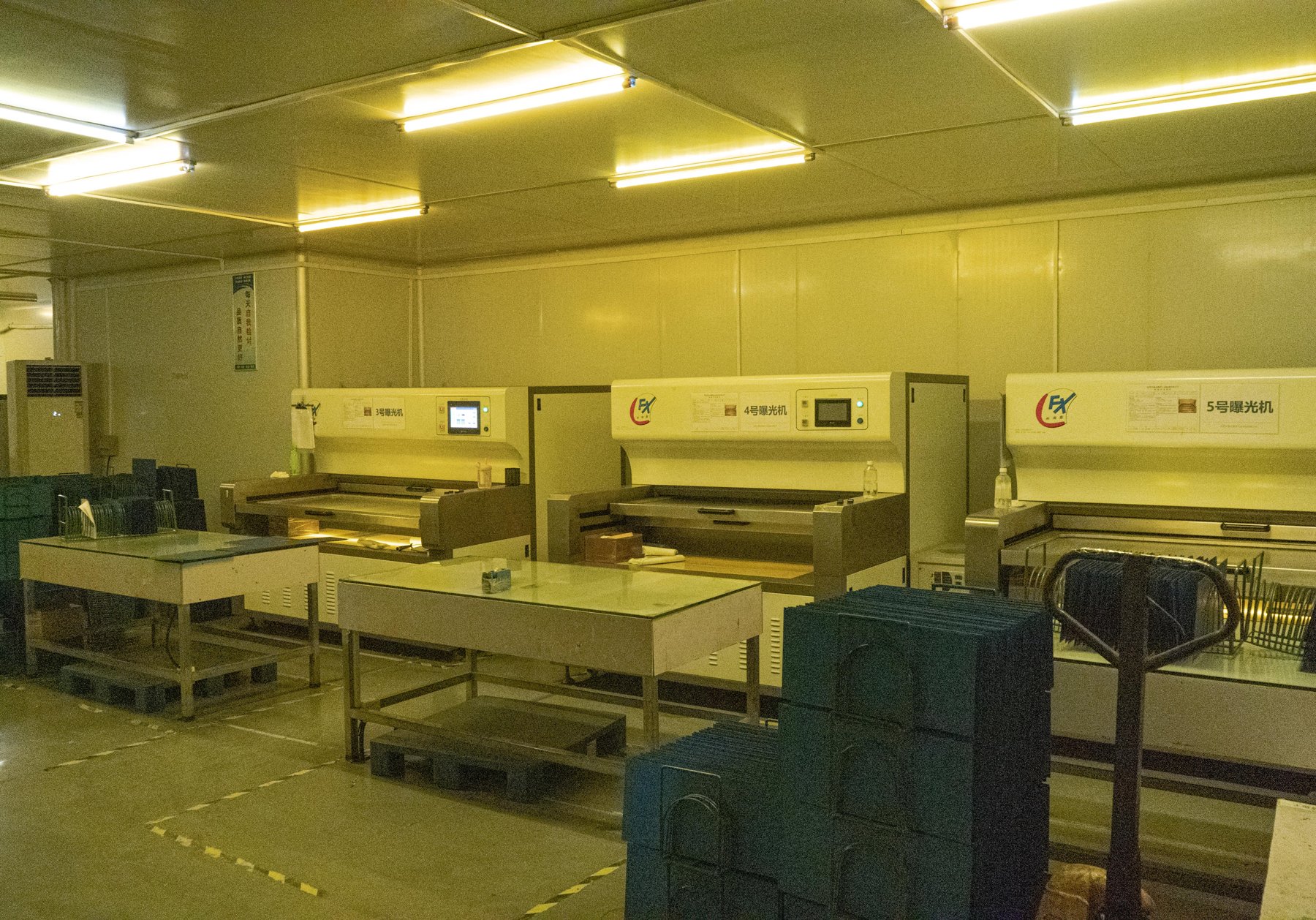

- Dust-free Workshop ProductionCleanroom exposure and developing lines eliminate particle defects on ultra-thin foils and optical-grade surfaces.
- OEM & ODM Custom ServiceFull drawing-to-delivery service: DFM review, tooling-free prototyping, process optimisation and gradient batch production.
- Strict Dimension InspectionCMM at ±0.002 mm accuracy, vision measuring systems and SPC reporting on every production batch.
Product range
Five families of custom etched hardware
Every part is made to your drawing — the categories below simply show where our processes are most often applied.
Custom project?
Send a drawing, get a DFM review
2D/3D drawings, PDF, DXF, STEP or a physical sample — we quote within 24 hours.

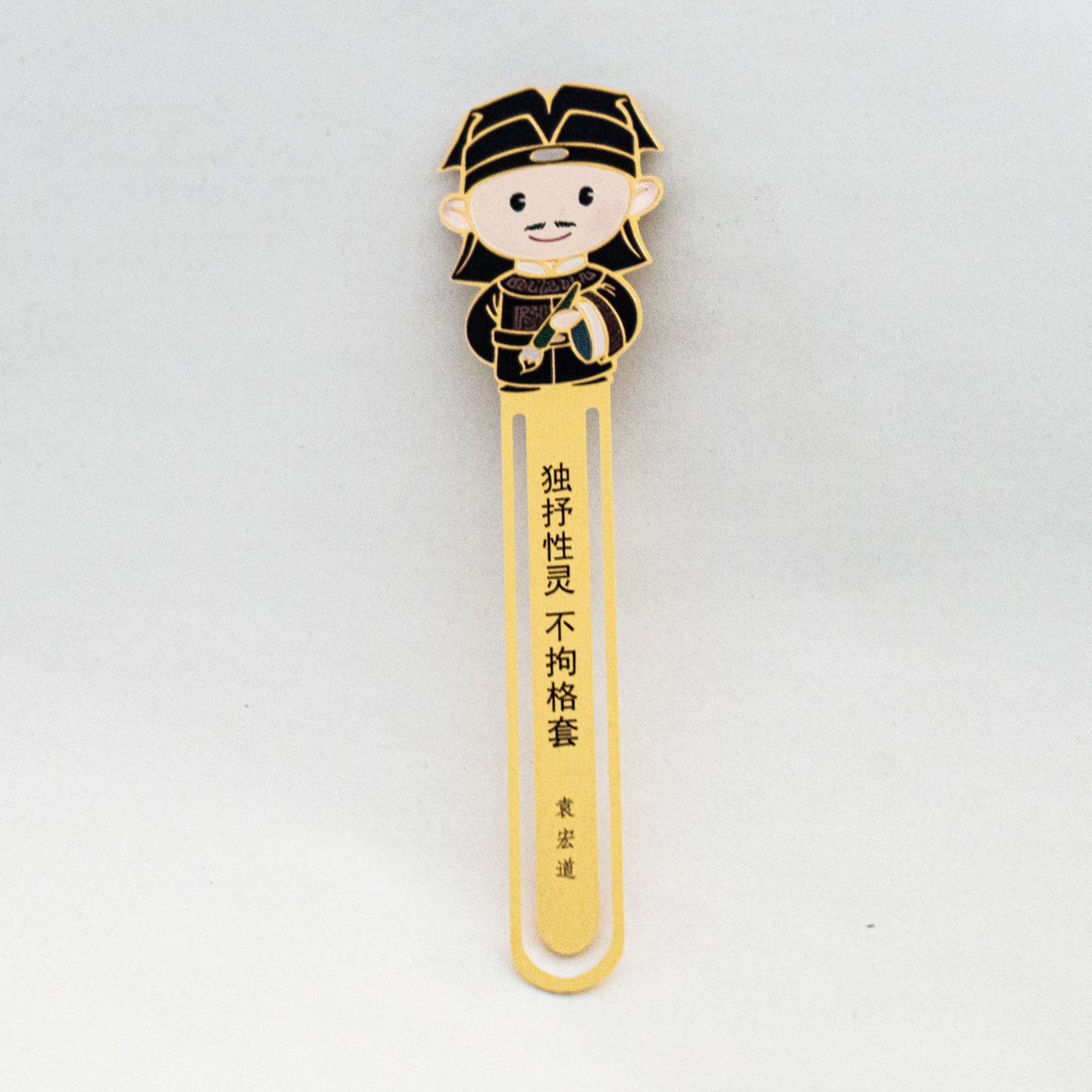

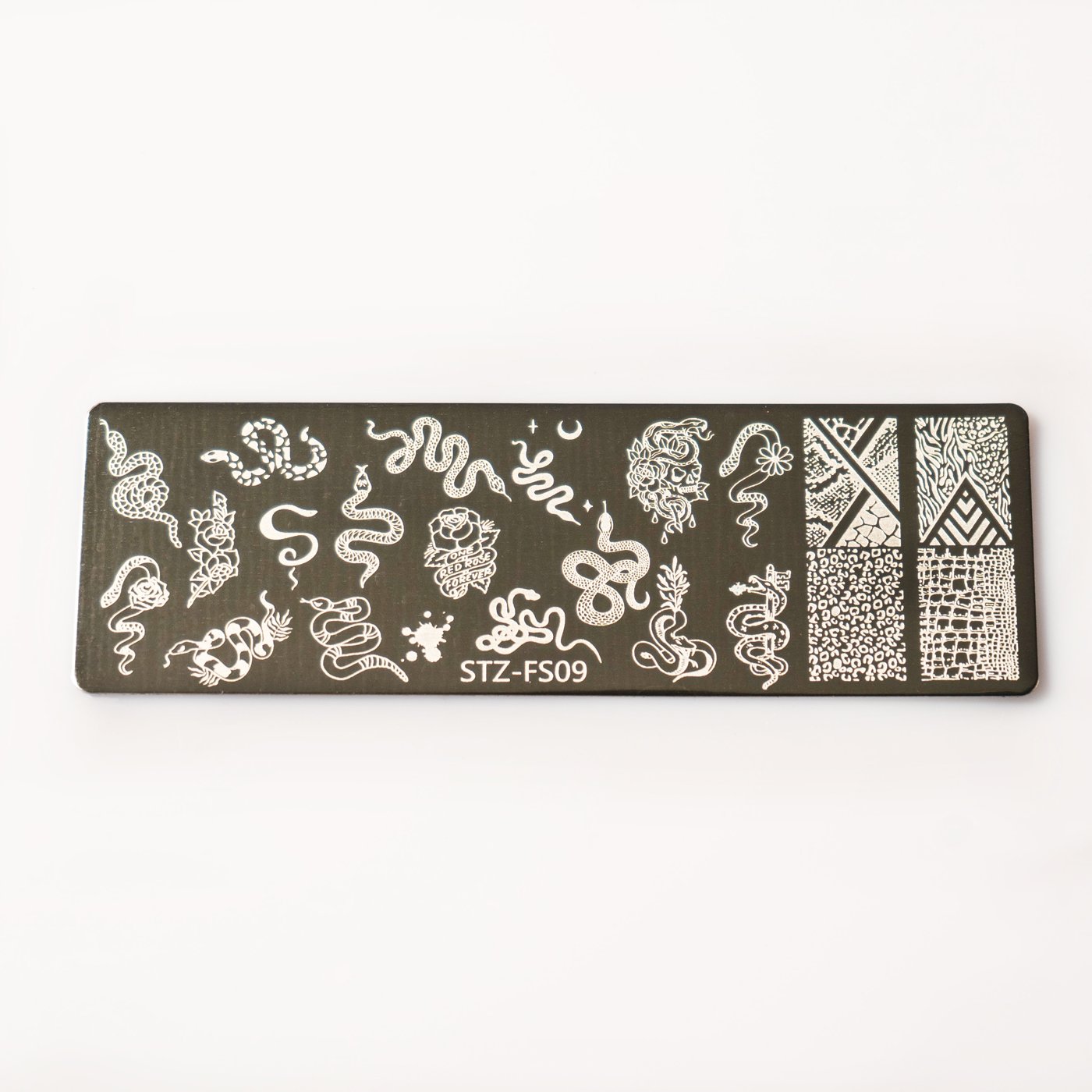

Selected work

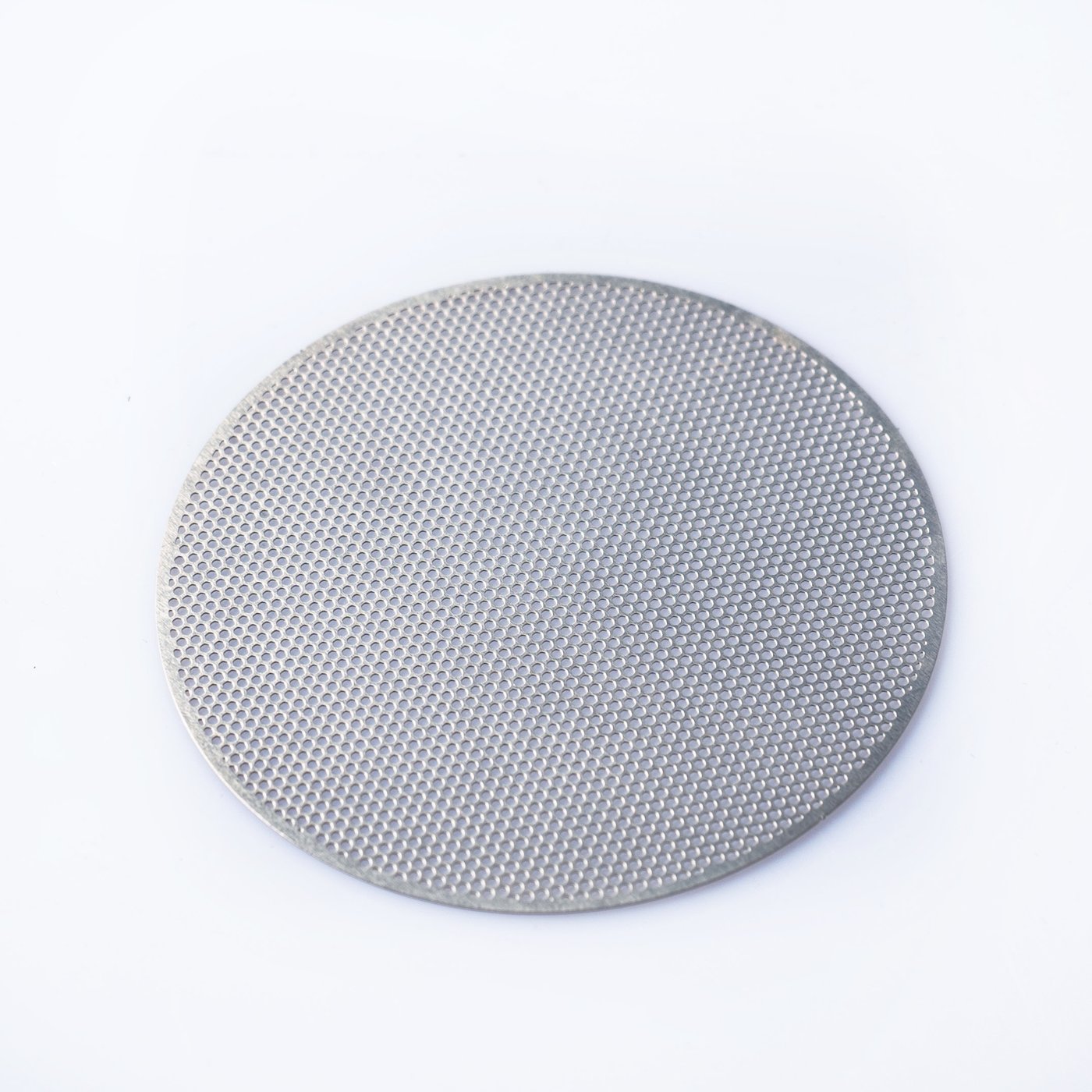

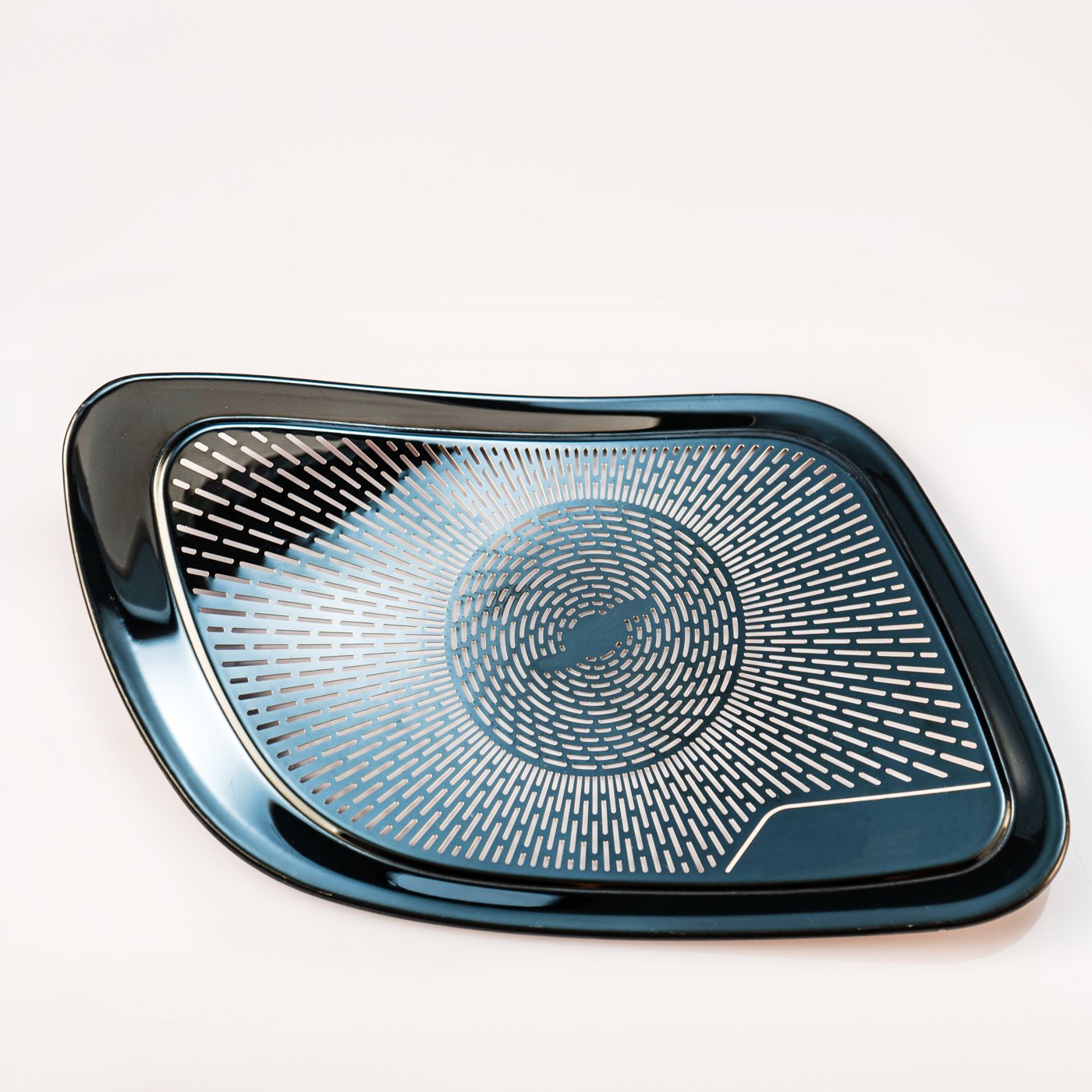

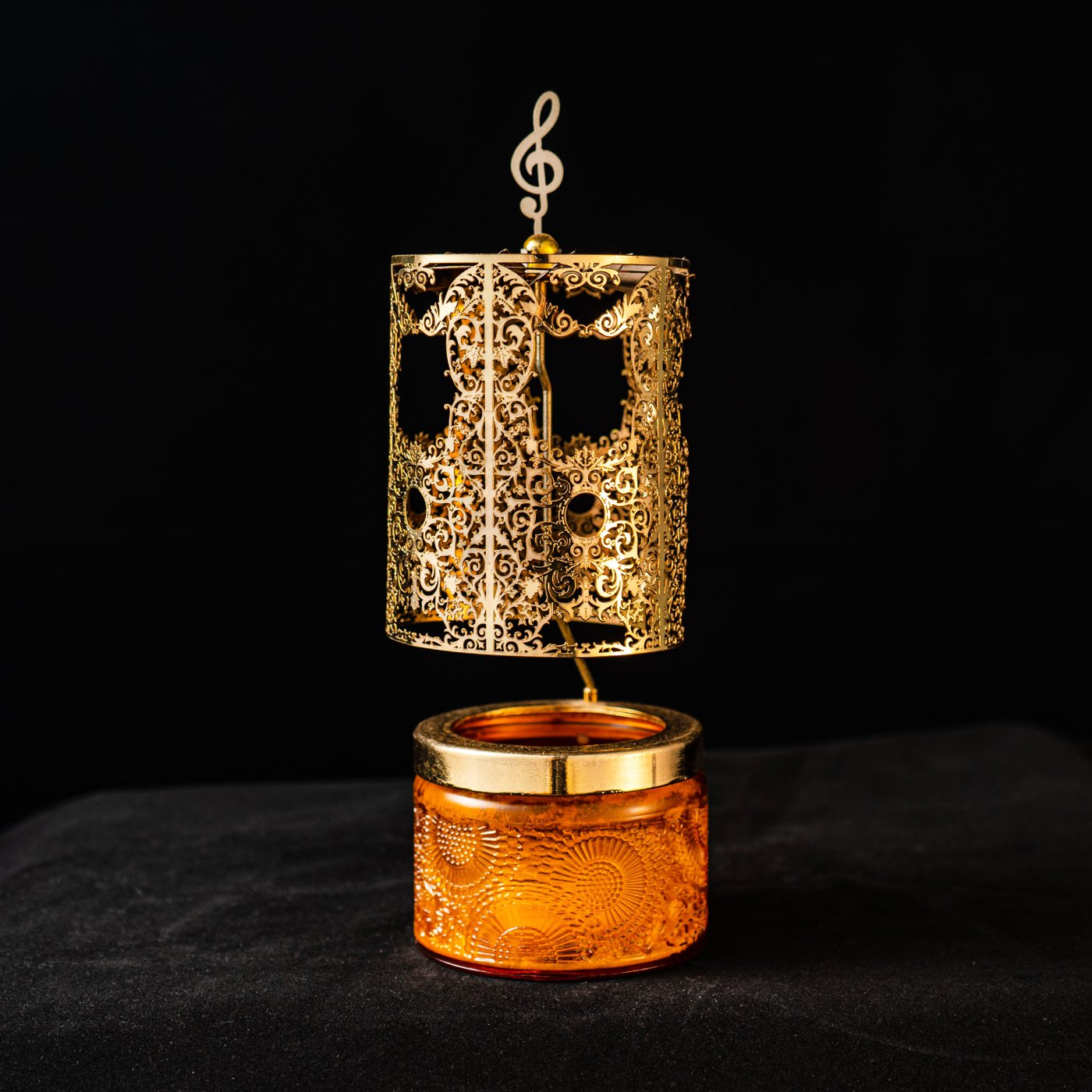

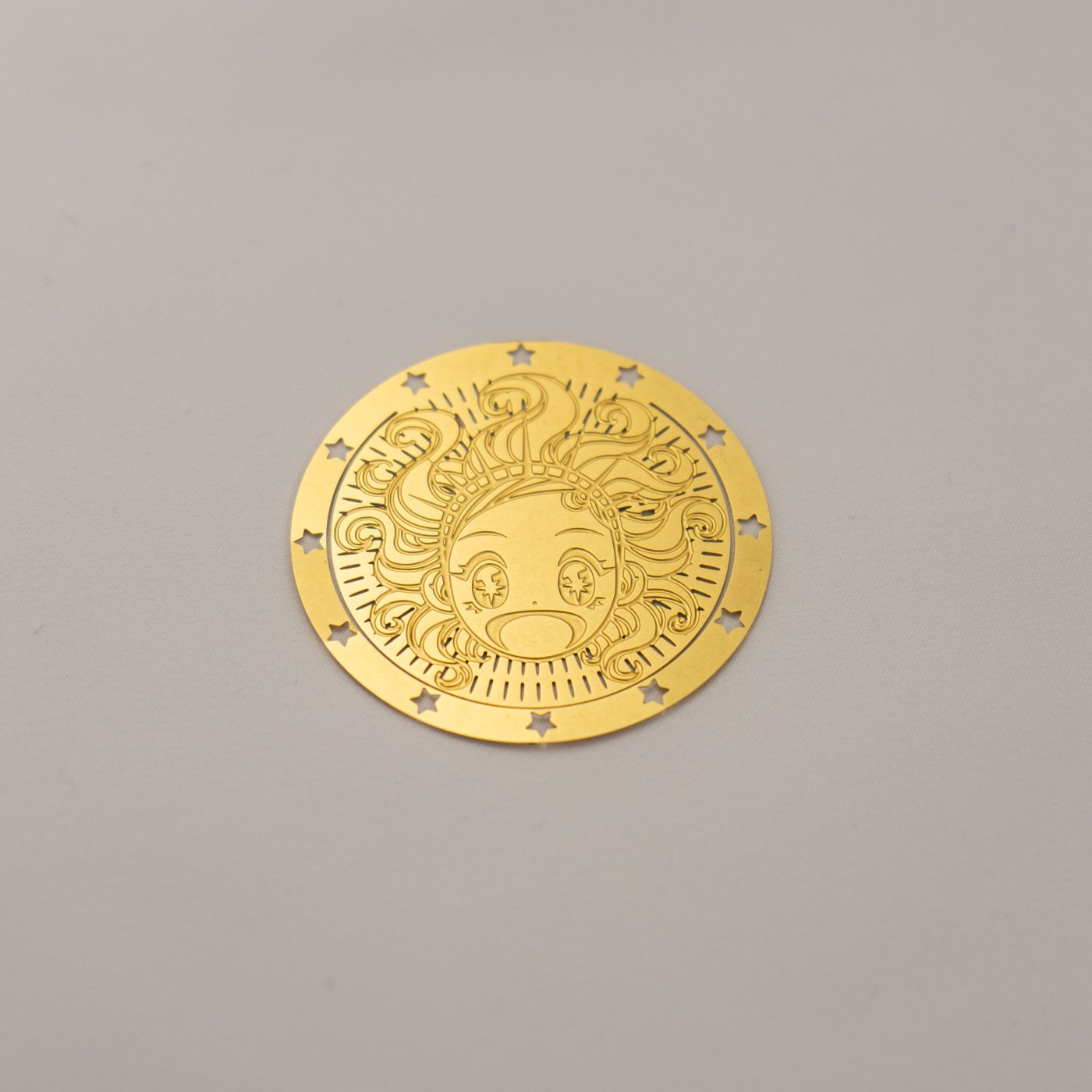

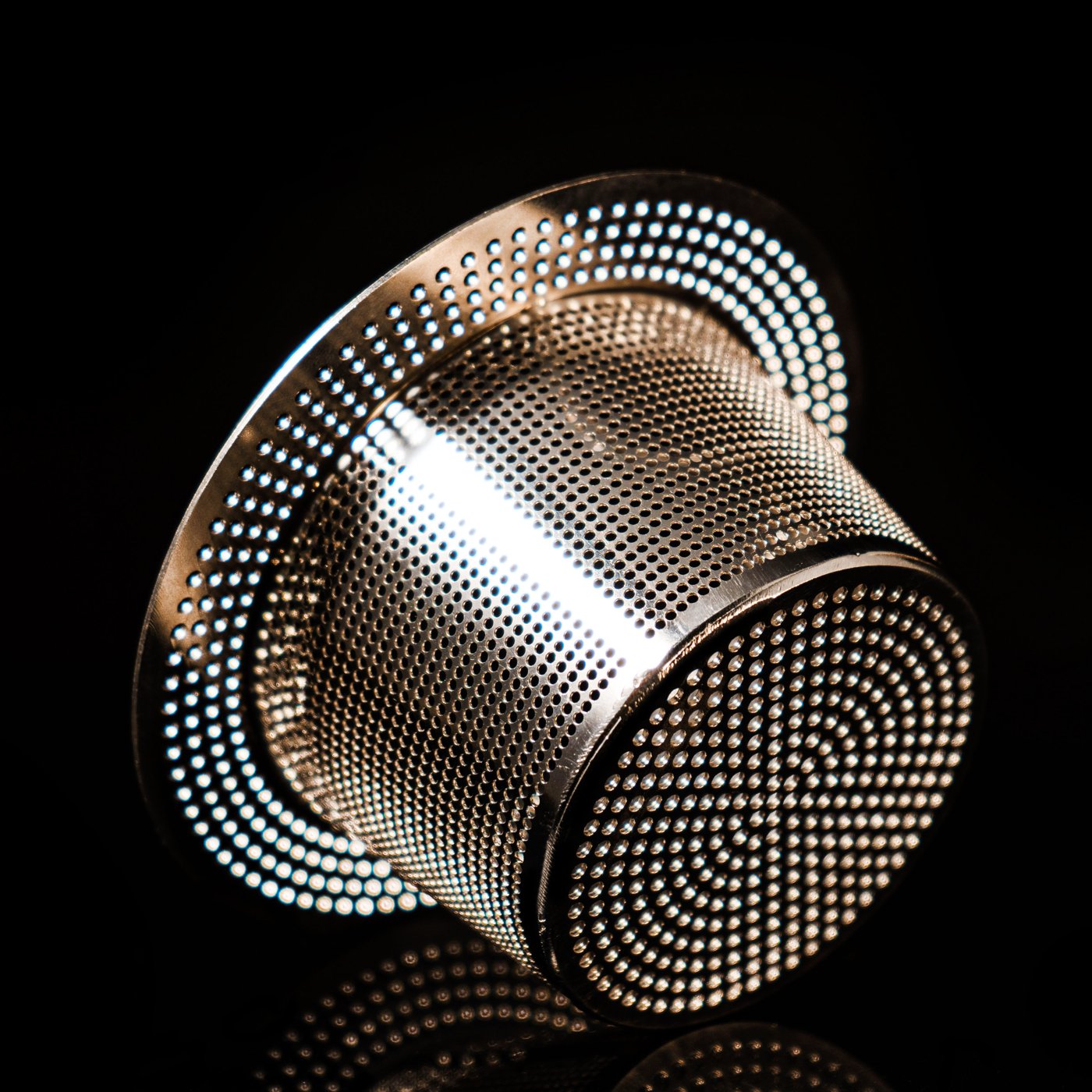

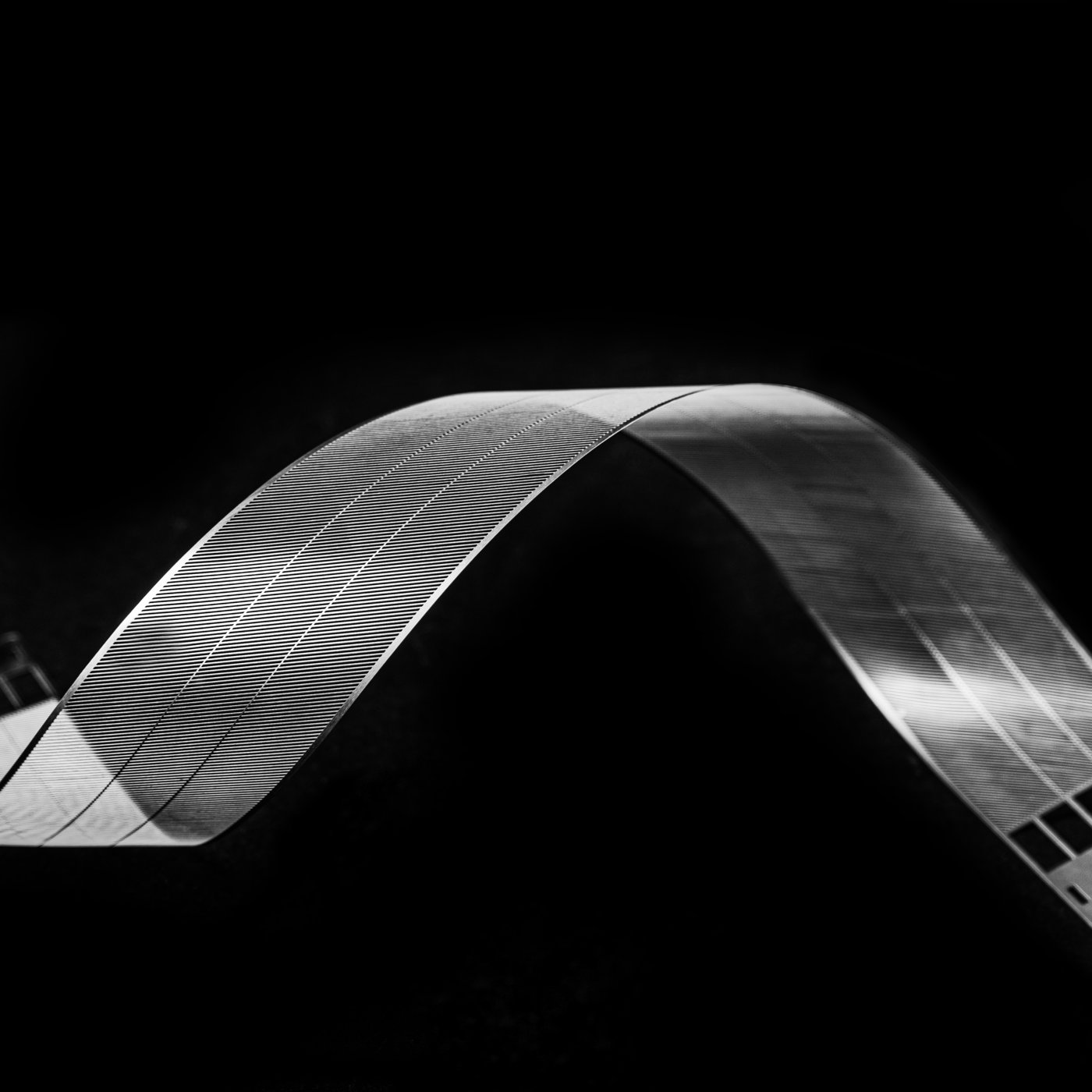

Precision parts we manufacture
Real production parts with full specification sheets — material, thickness, tolerance, finish, MOQ and lead time.
Manufacturing process
Nine controlled steps from raw sheet to export
Every stage is parameter-controlled and documented, so the tenth batch measures exactly like the first.
Raw Metal Sheet Incoming & Storage
Verify alloy composition, thickness, and surface quality; store qualified materials in climate-controlled warehouses with batch traceability.
Cleaning & Degreasing
Remove surface contaminants using alkaline ultrasonic cleaning; confirm cleanliness via surface tension test (<35 dynes/cm).
Exposure & Plate Making
Transfer design patterns via photolithography: apply photosensitive film → align mask with CCD positioning → UV exposure → develop unexposed areas.

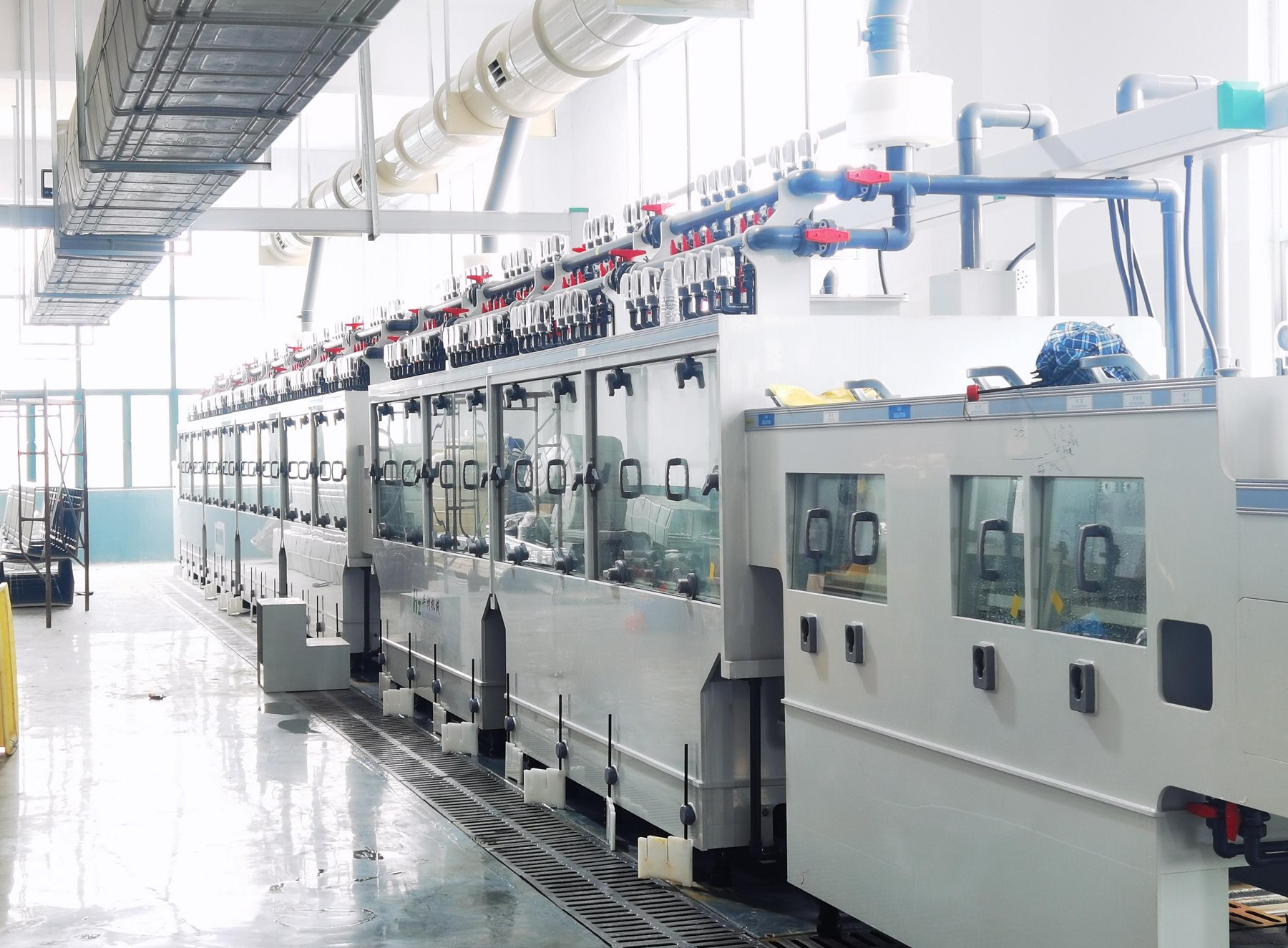

Chemical Etching
Dissolve unprotected metal with temperature-controlled FeCl₃/CuCl₂ solutions; monitor depth in real-time (tolerance ±0.005 mm).
Surface Treatment
Enhance performance through solvent degreasing, abrasive blasting (Ra 1.6–3.2 μm), phosphating, and passivation.
Precision Dimensional Inspection
Inspect critical dimensions using CMM (±0.002 mm accuracy) and vision measuring system; generate SPC analysis reports.
Flatness Testing
Measure flatness with laser tester (≤0.1 mm/100 mm deviation); conduct stress relief annealing for out-of-tolerance parts.
Full Inspection & Packaging
Perform visual inspection and functional testing; package with anti-static film and desiccant; label with traceability information.
Export Shipping
Prepare export documentation; comply with destination country packaging regulations; provide tracking information for sea/air freight.
How we work
From your drawing to your dock
A simple, transparent six-stage route used on every custom project.
Customer Drawing / Sample Confirmation
Rapid Prototyping
Sample Testing
Mass Production
Full Inspection
Packing & Shipping
Case studies
Projects delivered worldwide
Electronics, automotive, smart home and industrial filtration — with the numbers behind each result.
Let's build it
Ready to start your custom etching project?
Send us your drawings or samples — our engineers reply with a DFM review and quotation within 24 hours.
